1. Description

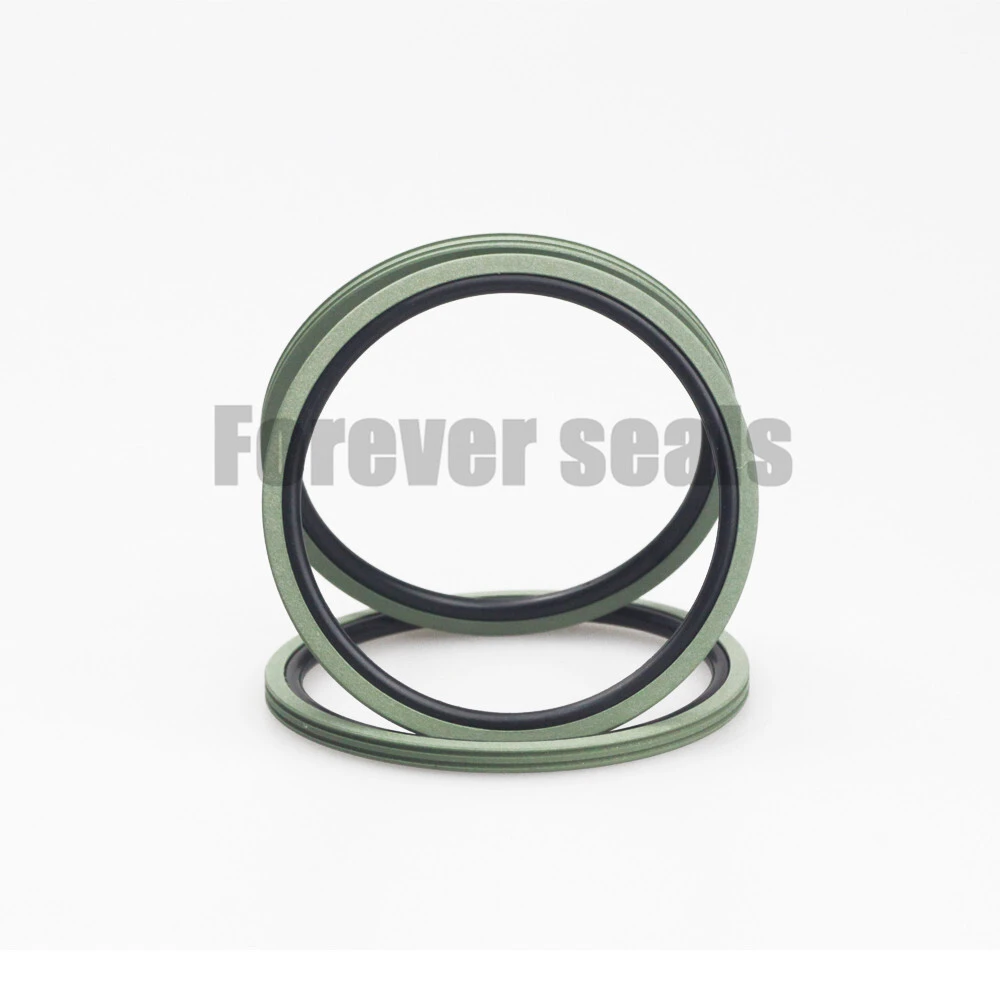

Suitable for sealing with rotating or swinging rods, shafts, pins, rotary joints, etc. It is a rotary sealing ring that can withstand both sides pressure or alternating pressure role of the double acting effect, used in construction machinery, building machinery and automotive equipment. It can be applied on occasions where piston rod and piston seal are required, low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
2. Installation Recommendation
3. Installation Sizes
|
Bore Diameter DN H9 |
Groove Diameter |
Groove Width |
Radial Clearance S max. |
Radius |
O-Ring Cross-Section |
||
|
Standard Range |
Available range |
d1 h9 |
L1+0.2 |
32MPa |
50MPa |
R1 |
d2 |
|
8-39.9 |
8-135.0 |
DN-4.9 |
2.2 |
0.15 |
0.10 |
0.40 |
1.78 |
|
40-79.9 |
14-250.0 |
DN-7.5 |
3.2 |
0.20 |
0.15 |
0.60 |
2.62 |
|
80-132.9 |
22-460.0 |
DN-11.0 |
4.2 |
0.25 |
0.20 |
1.00 |
3.53 |
|
133-329.9 |
40-675.0 |
DN-15.5 |
6.3 |
0.30 |
0.25 |
1.30 |
5.33 |
|
330-669.9 |
133-690.0 |
DN-21.0 |
8.1 |
0.30 |
0.25 |
1.80 |
7.00 |
|
670-999.9 |
670-999.9 |
DN-28.0 |
9.5 |
0.45 |
0.30 |
2.50 |
8.40 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3 - 1600mm |
0 - 30MPa |
-30℃ +200℃ |
1 m/s |
hydraulic oil, flame retardant liquid, water and others |
