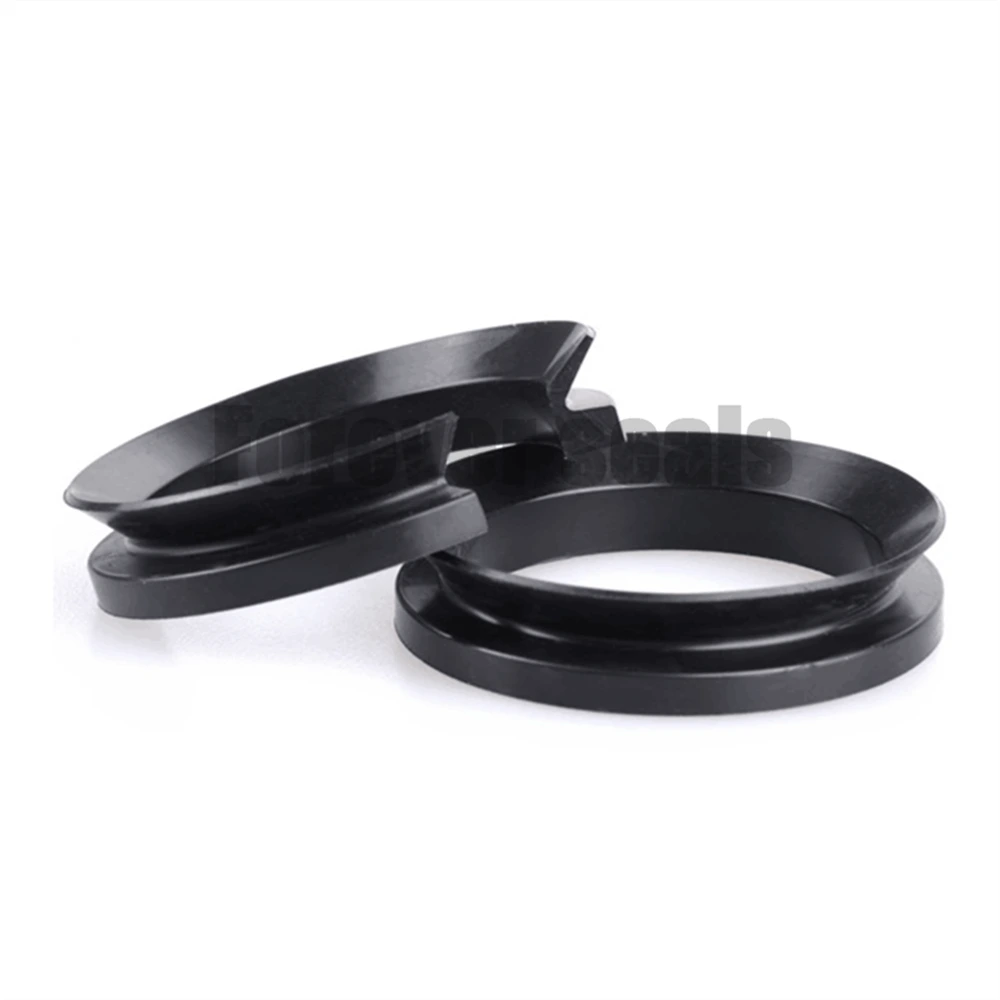

VA rubber seal V-seal V-Ring

Category： Rotary seals
Temperature: -30 - +200℃
Material: NBR, FKM
Color: balck, brown
Application: rotary shaft sealing
Product description：VA seal is a unique all-rubber seal for rotary shafts. It has been used successfully by OEMs and on the replacement market world wide in a broad range of applications. VA seal is the perfect seal to p
INQUIRY EMAIL

1. Description

VA seal is a unique all-rubber seal for rotary shafts. It has been used successfully by OEMs and on the replacement market world wide in a broad range of applications. VA seal is the perfect seal to prevent the ingress of dirt, dust, water or combinations of these media while positively retaining grease. With its unique design and performance, VA seal can be used with a wide range of bearing types. It can also be used as a secondary seal to protect primary seals that do not perform well in hostile environments.

2. Installation Recommendation

3. Standard materials

NBR / FKM

4. Installation Dimensions

For shaft diameter d₁	Inside dia. d	Height of cross- section c	Dimension A	Free width B	Maximum d₂	Minimum d₃	Fitted width B₁	Order No.
2.7 - 3.5	2.5	1.5	2.1	3.0	d1 + 1	d1 + 4	2.5 ±0.3	VA003
3.5 - 4.5	3.2	2	2.4	3.7	d1 + 1	d1 + 6	3.0 ±0.4	VA004
4.5 - 5.5	4	2	2.4	3.7	d1 + 1	d1 + 6	3.0 ±0.4	VA005
5.5 - 6.5	5	2	2.4	3.7	d1 + 1	d1 + 6	3.0 ±0.4	VA006
6.5 - 8.0	6	2	2.4	3.7	d1 + 1	d1 + 6	3.0 ±0.4	VA007
8.0 - 9.5	7	2	2.4	3.7	d1 + 1	d1 + 6	3.0 ±0.4	VA008
9.5 - 11.5	9	3	3.4	5.5	d1 + 1	d1 + 9	4.5 ±0.6	VA010
11.5 - 12.5	10.5	3	3.4	5.5	d1 + 1	d1 + 9	4.5 ±0.6	VA012
12.5 - 13.5	11.7	3	3.4	5.5	d1 + 1	d1 + 9	4.5 ±0.6	VA013
13.5 - 15.5	12.5	3	3.4	5.5	d1 + 1	d1 + 9	4.5 ±0.6	VA014
