1. Description

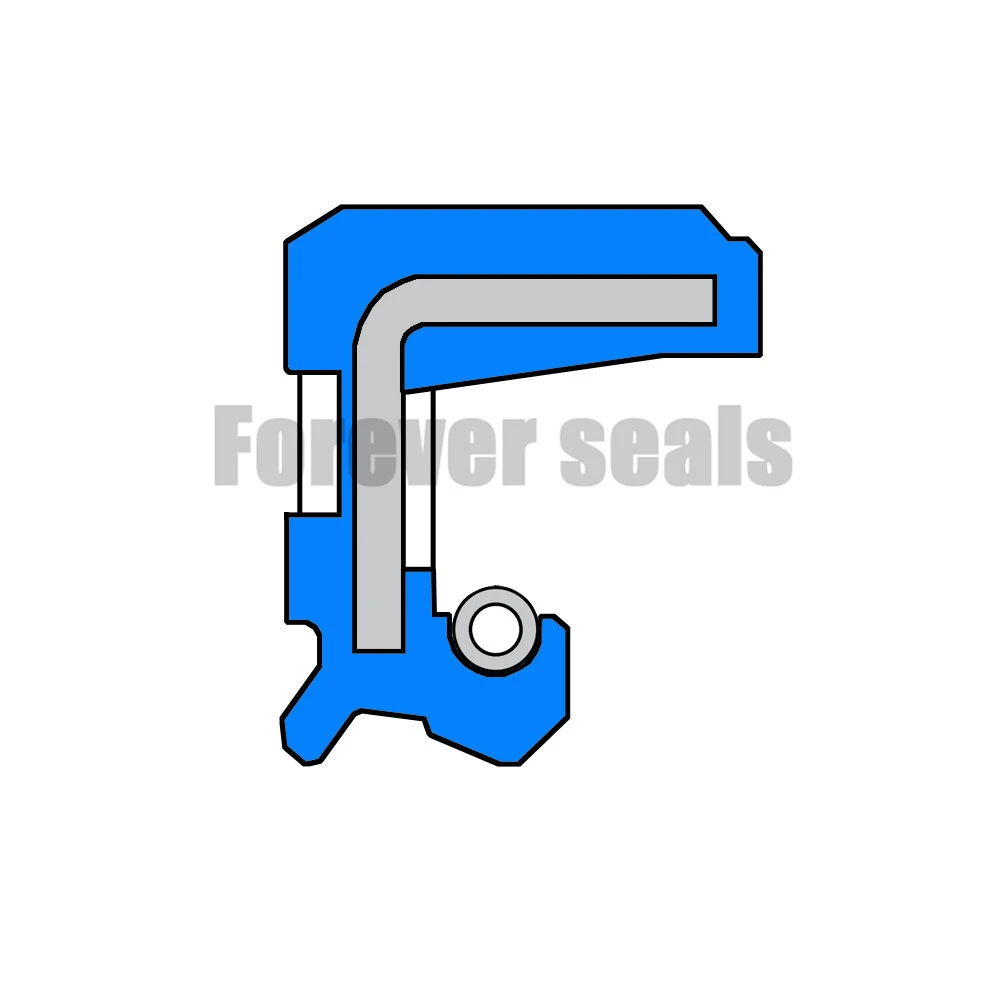

TCV is the standard oil seal which used for rotation axis. It is linked together with metal skeleton and rubber elastic layer. Mainly used for the working conditions of low pressure and high speed rotation.
2. Standard materials
FKM, NBR
3. Installation Dimensions
| Inner Diam. | Outer Diam. | Height | Order No. |
| 17 | 30 | 6 | TCV17*30*6 |
| 17.46 | 28.58 | 5.7/6.3 | TCV17.46*28.58*5.7/6.3 |
| 18 | 30 | 6 | TCV18*30*6 |
| 18 | 35 | 9 | TCV18*35*9 |
| 19 | 30 | 6 | TCV19*30*6 |
| 19 | 35 | 6 | TCV19*35*6 |
| 20 | 47 | 6 | TCV20*47*6 |
| 22 | 35 | 6 | TCV22*35*6 |
| 24 | 38 | 8 | TCV24*38*8 |
| 25 | 35 | 6 | TCV25*35*6 |
| 25 | 35 | 7 | TCV25*35*7 |
| 28 | 40 | 6 | TCV28*40*6 |
| 28.56 | 42 | 5.5 | TCV28.56*42*5.5 |
| 28.575 | 50.8 | 6.35 | TCV28.575*50.8*6.35 |
| 30 | 42 | 7 | TCV30*42*7 |
| 30 | 48 | 6 | TCV30*48*6 |
| 30 | 52 | 7 | TCV30*52*7 |
| 34.92 | 52 | 6 | TCV34.92*52*6 |
| 34.93 | 50.8 | 7.95 | TCV34.93*50.8*7.95 |
| 35 | 47 | 6 | TCV35*47*6 |
| 35 | 52 | 7 | TCV35*52*7 |
| 35 | 54 | 6/5.5 | TCV35*54*6/5.5 |
| 35 | 55 | 7 | TCV35*55*7 |
| 35 | 57 | 8 | TCV35*57*8 |
| 37 | 57 | 9 | TCV37*57*9 |
| 38.1 | 57.15 | 7.95 | TCV38.1*57.15*7.95 |
| 40 | 52 | 7 | TCV40*52*7 |
| 40 | 55 | 7 | TCV40*55*7 |
| 40 | 60 | 12 | TCV40*60*12 |
| 40 | 62 | 7 | TCV40*62*7 |
| 40 | 67 | 7 | TCV40*67*7 |
| 40 | 80 | 7 | TCV40*80*7 |
| 42 | 62 | 7 | TCV42*62*7 |
| 42 | 72 | 6.5 | TCV42*72*6.5 |
| 43.5 | 63.5 | 7 | TCV43.5*63.5*7 |
| 44.45 | 57.15 | 7.9 | TCV44.45*57.15*7.9 |
| 44.45 | 60 | 7 | TCV44.45*60*7 |
| 45 | 62 | 7 | TCV45*62*7 |
| 45 | 63 | 8 | TCV45*63*8 |
| 45 | 65 | 6 | TCV45*65*6 |
| 45 | 65 | 7 | TCV45*65*7 |
| 45 | 80 | 7 | TCV45*80*7 |
| 47 | 62 | 8 | TCV47*62*8 |
| 49.23 | 63.55 | 7.95 | TCV49.23*63.55*7.95 |
| 50 | 65 | 7 | TCV50*65*7 |
| 50 | 68 | 7 | TCV50*68*7 |
| 50 | 70 | 7 | TCV50*70*7 |
| 50 | 72 | 7 | TCV50*72*7 |
| 50 | 75 | 8 | TCV50*75*8 |
| 50 | 80 | 7 | TCV50*80*7 |
| 52 | 72 | 7/8 | TCV52*72*7/8 |
| 55 | 70 | 7 | TCV55*70*7 |
| 55 | 72 | 8 | TCV55*72*8 |
| 55 | 78 | 8 | TCV55*78*8 |
| 55 | 90 | 7 | TCV55*90*7 |
| 58 | 80 | 8 | TCV58*80*8 |
| 60 | 80 | 7 | TCV60*80*7 |
| 62 | 85 | 7 | TCV62*85*7 |
| 65 | 97 | 7.5 | TCV65*97*7.5 |
| 70 | 95 | 7 | TCV70*95*7 |
| 73 | 90 | 7/8 | TCV73*90*7/8 |
| 80 | 100 | 7 | TCV80*100*7 |
| 60 | 106 | 7 | TCV60*106*7 |
| 85 | 110 | 8 | TCV85*110*8 |
| 90 | 110 | 7 | TCV90*110*7 |
| 75 | 120 | 7 | TCV75*120*7 |
| 100 | 120 | 8 | TCV100*120*8 |
4. Product Catalog
You can download catalog through below link.
http://www.foreverseals.com/download.html
