1. Description

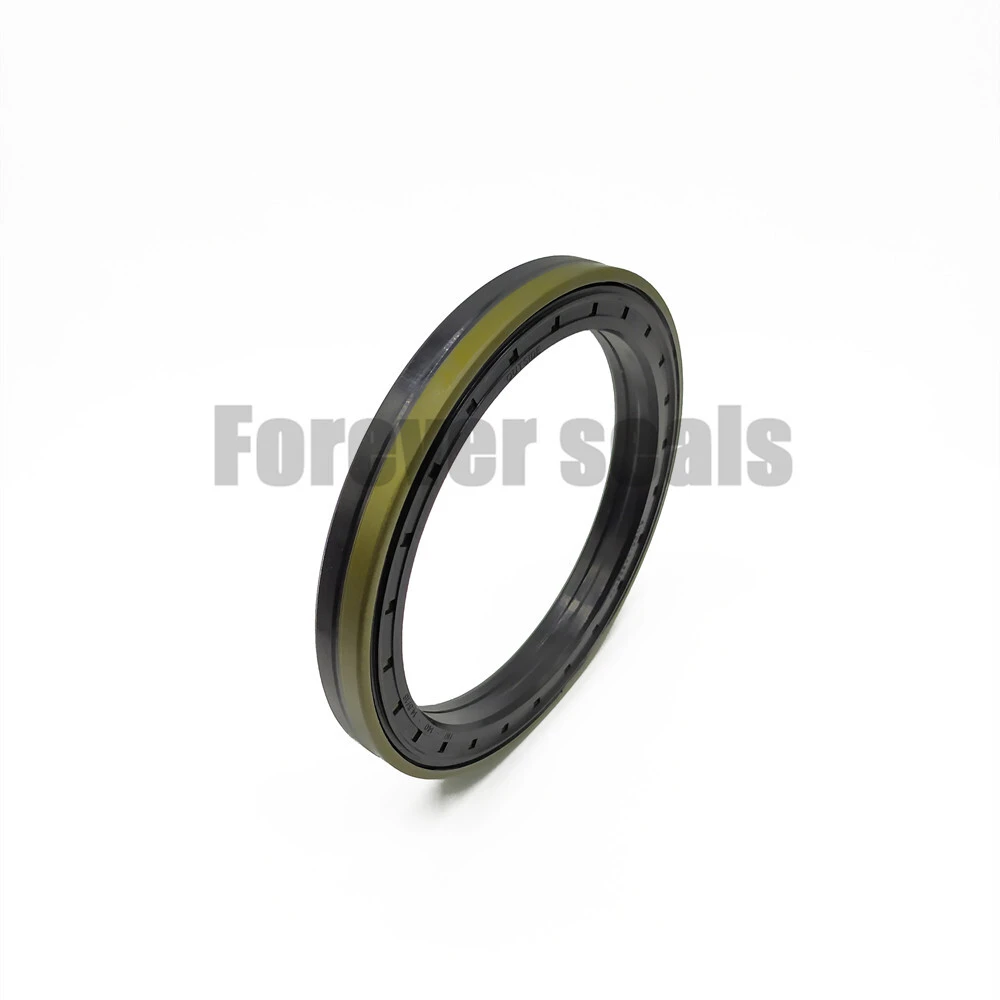

Cassette seals are reliable rotary sealing solutions that are effective against multiple heavy-duty pollutants, such as dust, jets of water, mud and stones, UV rays, aggressive fluids, etc. Internal dynamic and static sealing systems provide ultimate protection from any external soiling and contamination that will otherwise compromise application performances and adversely affect vehicle reliability. Each cassette seal consists of an oil seal and a sleeve, which have been unitized. Labyrinth seal technology protects them from external soiling.
2. Installation Recommendation
3. Standard materials
NBR
4. Installation Dimensions
|
Inner Diam. |
Outer Diam. |
Height |
Order No. |
|
45 |
70 |
14/17 |
cassette45*70*14/17 |
|
56 |
80 |
13/14.5 |
cassette56*80*13/14.5 |
|
65 |
92 |
10/15 |
cassette65*92*10/15 |
|
70 |
95 |
13/14.5 |
cassette70*95*13/14.5 |
|
75 |
100 |
13/14.5 |
cassette75*100*13/14.5 |
|
85 |
110 |
13/14.5 |
cassette85*110*13/14.5 |
|
110 |
140 |
14.5/16 |
cassette110*140*14.5/16 |
|
127 |
160 |
15.5/17.5 |
cassette127*160*15.5/17.5 |
|
136.8 |
165 |
13 |
cassette136.8*165*13 |
|
147 |
170 |
15.5/16 |
cassette147*170*15.5/16 |
|
148 |
170 |
14 |
cassette148*170*14 |
|
145 |
175 |
14.5/15.5 |
cassette145*175*14.5/15.5 |
|
145 |
189 |
15.5/17 |
cassette145*189*15.5/17 |
|
150.15 |
178 |
13/16 |
cassette150.15*178*13/16 |
|
150 |
180 |
14.5/16 |
cassette150*180*14.5/16 |
|
155 |
190 |
17.5/19 |
cassette155*190*17.5/19 |
|
165 |
195 |
16.5/18 |
cassette165*195*16.5/18 |
|
167.8 |
198 |
15.5/16 |
cassette167.8*198*15.5/16 |
|
189.8 |
230 |
15.5/17 |
cassette189.8*230*15.5/17 |
|
190 |
220 |
16/18 |
cassette190*220*16/18 |
|
210 |
240 |
16/18 |
cassette210*240*16/18 |
5. Product Catalog
You can download catalog through below link.
http://www.foreverseals.com/download.html
