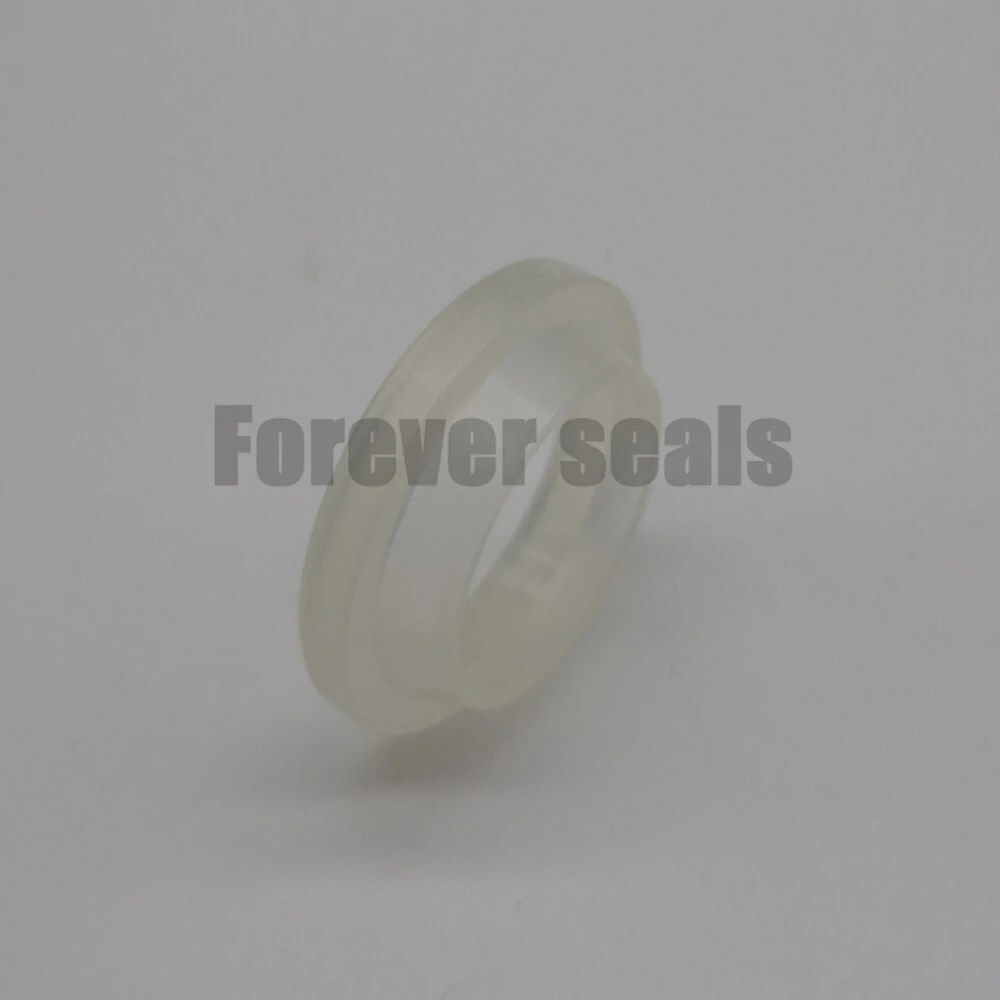

J Wiper Seal

Category： Wiper seals
Temperature: -35 - +100℃
Material: PU
Color: Green,Blue,Light yellow,Transparent
Media: Hydraulic oils (mineral oil-based)
Product description：J wiper is a sealing element which used in hydraulic applications to obstruct all kinds of negative foreign particles to go into the cylinders
INQUIRY EMAIL

1. Description

J wiper is a sealing element which used in hydraulic applications to obstruct all kinds of negative foreign particles to go into the cylinders. Standardized with the material of high performance PU 90±2 Shore A.

Dust proof for rod in air cylinder under reciprocating movements or exposed valve rod.

2. Technical Data

Temperature: -35℃~+100℃

Speed: ≤1m/s

Media: Hydraulic oils(mineral oil-based)

Source of standard: JB/T6657-93

Grooves conform to: JB/T6656-93

3. Material

Materials: TPU

Hardness: 90±2 Shore A
